Motherboard is the central printed circuit board in many modern computers  and holds many of the crucial components of the system, while providing connectors for other peripherals. The motherboard is sometimes alternatively known as the main board, system board, or, on Apple computers, the logic board.It is also sometimes casually shortened to mobo.
        Prior to the advent of the microprocessor, a computer was usually built in a card-cage case or mainframe with components connected by a backplane  consisting of a set of slots themselves connected with wires; in very old designs the wires were discrete connections between card connector pins, but printed circuit boards soon became the standard practice. The Central Processing Unit, memory and peripherals were housed on individual printed circuit boards which plugged into the backplane.
        During the late 1980s and 1990s, it became economical to move an increasing number of peripheral functions onto the motherboard. In the late 1980s, motherboards began to include single ICs Capable of supporting a set of low-speed peripherals: keyboard, mouse, floppy disk drive, serial ports, and parallel ports. As of the late 1990s, many personal computer motherboards supported a full range of audio, video, storage, and networking functions without the need for any expansion cards at all; higher-end systems for 3D gaming and computer graphics typically retained only the graphics card as a separate component.
     The early pioneers of motherboard manufacturing were Michronics, Mylex, AMI, DTK, Hauppauge, Orchid Technology, Elitegroup, DFI, and a number of Taiwan-based manufacturers.
     The most popular computers such as the Apple II and IBM PC had published schematic diagrams and other documentation which permitted rapid reverse-engineering and third-party replacement motherboards. Usually intended for building new computers compatible with the exemplars, many motherboards offered additional performance or other features and were used to upgrade the manufacturer's original equipment.
     The term mainboard is archaically applied to devices with a single board and no additional expansions or capability. In modern terms this would include embedded systems and controlling boards in televisions, washing machines, etc. A motherboard specifically refers to a printed circuit with the capability to add/extend its performance.

Contact Image Sensors (CIS) are a relatively recent technological innovation in the field of optical flatbed scanners that are rapidly replacing CCDs  in low power and portable applications. As the name implies, CISs place the image sensor in near direct contact with the object to be scanned in contrast to using mirrors to bounce light to a stationary sensor, as is the case in conventional CCD scanners. A CIS typically consists of a linear array of detectors, covered by a focusing lens and flanked by red, green, and blue LEDs  for illumination. The use of LEDs allows the CIS to be highly power efficient, allowing scanners to be powered through the minimal line voltage supplied via a USB  connection. CIS devices typically produce lower image quality compared to CCD devices; in particular, the depth of field is greatly limited, which poses a problem for material that is not perfectly flat. However, a CIS contact sensor is smaller and lighter than a CCD line sensor, and allows all the necessary optical elements to be included in a compact module, thus helping to simplify the inner structure of the scanner. With a CIS contact sensor, the scanner can be portable, with a height of only around 30 mm. CIS is a both a key component of, and widely used in, scanners (especially portable scanners), electrographs, bar code readers and optical identification technology.

                       In computing, an image scanner—often abbreviated to just scanner— is a device that optically scans images, printed text, handwriting, or an object, and converts it to a digital image. Common examples found in offices are variations of the desktop (or flatbed) scanner where the document is placed on a glass window for scanning. Hand-held scanners, where the device is moved by hand, have evolved from text scanning "wands" to 3D scanners  used for industrial design, reverse engineering, test and measurement, orthotics, gaming and other applications. Mechanically driven scanners that move the document are typically used for large-format documents, where a flatbed design would be impractical.
                        Modern scanners typically use a charge-coupled device (CCD) or a Contact Image Sensor (CIS) as the image sensor, whereas older drum scanners use a photomultiplier tube as the image sensor. A rotary scanner, used for high-speed document scanning, is another type of drum scanner, using a CCD array instead of a photomultiplier. Other types of scanners are planetary scanners, which take photographs of books and documents, and 3D scanners, for producing three-dimensional models of objects.
                        Another category of scanner is digital camera scanners, which are based on the concept of reprographic cameras. Due to increasing resolution and new features such as anti-shake, digital cameras have become an attractive alternative to regular scanners. While still having disadvantages compared to traditional scanners (such as distortion, reflections, shadows, low contrast), digital cameras offer advantages such as speed, portability and gentle digitizing of thick documents without damaging the book spine. New scanning technologies are combining 3D scanners with digital cameras to create full-color, photo-realistic 3D models of objects.

                         In the biomedical research area, detection devices for DNA microarrays are called scanners as well. These scanners are high-resolution systems (up to 1 µm/ pixel), similar to microscopes. The detection is done via CCD or a photomultiplier tube (PMT).

                 Thermal Bubble Printing Of the several technologies used by inkjet printer manufacturers, the most popular is the bubble jet. It has been given this name because inside the bubble jet print head, tiny resistors generate heat that vaporises the ink to create a bubble. The expansion that creates the bubble causes a droplet to form and eject from the print head. The bubble jet print head typically has 64 or 128 tiny nozzles, and all of them can fire a droplet simultaneously.

                  Each nozzle is approximately 70 microns, or about the same diameter as a human hair. Dot sizes vary between 50 and 60 microns in diameter. The smallest dot size visible to the naked eye is around 30 microns. The nozzles are capable of delivering drops with a volume of around 8 - 10 picolitres. Dye-based cyan, magenta and yellow inks are normally delivered via a combined colour print-heads.

                 Several small colour ink drops - typically between four and eight - can be combined to deliver dots of varying sizes. This also achieves a bigger palette of non-halftoned colours and smoother halftones. Black ink, which is generally based on bigger pigment molecules, is delivered from a separate print-head in larger drop volumes of around 35pl. Resolution varies between 300 and 600 dots per inch, with enhanced resolutions on some printers of 1200dpi.

                 A technology that relies on heat, such as thermal, creates two limitations on performance. First, because the firing process is heat based, the ink must be resistant to heat. And second, because of the heating, there is a secondary need for a cooling process, which affects print speed. Print speed is chiefly a function of how quickly the nozzles can be made to fire ink drops and the width of the swath across the paper printed by the print-head. This typically translates into print speeds of between 4 to 8 pages per minute for monochrome text and 2 to 4ppm for colour text and graphics.

A Laser Printer is a common type of computer printer that rapidly produces high quality text and graphics on plain paper. As with digital photocopiers and multifunction printers (MFPs), laser printers employ a xerographic printing process but differ from analog photocopiers in that the image is produced by the direct scanning of a laser beam across the printer's photoreceptor.

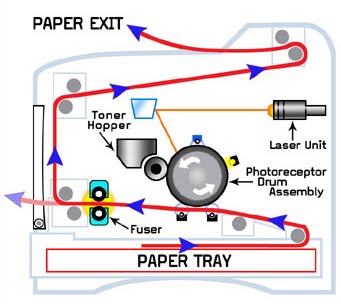

               A laser beam projects an image of the page to be printed onto an electrically charged rotating drum coated with selenium or, more common in modern printers, organic photoconductors. Photoconductivity removes charge from the areas exposed to light. Dry ink (toner) particles are then electrostatically picked up by the drum's charged areas. The drum then prints the image onto paper by direct contact and heat, which fuses the ink to the paper.
               Unlike impact printers, laser printer speed can vary widely, and depends on many factors, including the graphic intensity of the job being processed. The fastest models can print over 200 monochrome pages per minute (12,000 pages per hour). The fastest colour laser printers can print over 100 pages per minute (6000 pages per hour). Very high-speed laser printers are used for mass mailings of personalized documents, such as credit card or utility bills, and are competing with lithography in some commercial applications.
               The cost of this technology depends on a combination of factors, including the cost of paper, toner, and infrequent drum replacement, as well as the replacement of other consumables such as the fuser assembly and transfer assembly. Often printers with soft plastic drums can have a very high cost of ownership that does not become apparent until the drum requires replacement.
               A duplexing printer (one that prints on both sides of the paper) can halve paper costs and reduce filing volumes. Formerly only available on high-end printers, duplexers are now common on mid-range office printers, though not all printers can accommodate a duplexing unit. Duplexing can also give a slower page-printing speed, because of the longer paper path.
               In comparison with the laser printer, most inkjet printers and dot-matrix printers simply take an incoming stream of data and directly imprint it in a slow lurching process that may include pauses as the printer waits for more data. A laser printer is unable to work this way because such a large amount of data needs to output to the printing device in a rapid, continuous process. The printer cannot stop the mechanism precisely enough to wait until more data arrives, without creating a visible gap or misalignment of the dots on the printed page.

               Instead the image data is built up and stored in a large bank of memory capable of representing every dot on the page. The requirement to store all dots in memory before printing has traditionally limited laser printers to small fixed paper sizes such as letter or A4. Most laser printers are unable to print continuous banners spanning a sheet of paper two meters long, because there is not enough memory available in the printer to store such a large image before printing begins.

An inkjet printer is a type of computer printer that reproduces a digital image by propelling variably-sized droplets of liquid material onto a page. Inkjet printers are the most common type of printer and range from small inexpensive consumer models to very large and expensive professional machines.
                             The concept of inkjet printing dates back to the 19th century and the technology was first developed in the early 1950s. Starting in the late 1970s inkjet printers that could reproduce digital images generated by computers were developed, mainly by Epson, Hewlett-Packard and Canon. In the worldwide consumer market, four manufacturers account for the majority of inkjet printer sales: Canon, Hewlett-Packard, Epson, and Lexmark.
                                       The emerging ink jet material deposition market also uses ink jet technologies, typically piezoelectric crystals, to deposit materials directly on substrates.

               A Dot Matrix Printer or impact matrix printer is a type of computer printer  with a print head that runs back and forth, or in an up and down motion, on the page and prints by impact, striking an ink-soaked cloth ribbon against the paper, much like the print mechanism on a typewriter. However, unlike a typewriter or daisy wheel printer, letters are drawn out of a dot matrix, and thus, varied fonts and arbitrary graphics can be produced. Because the printing involves mechanical pressure, these printers can create carbon copies and carbon less copies.
               Each dot is produced by a tiny metal rod, also called a "wire" or "pin", which is driven forward by the power of a tiny electromagnet or solenoid, either directly or through small levers. Facing the ribbon and the paper is a small guide plate pierced with holes to serve as guides for the pins. The moving portion of the printer is called the print head, and when running the printer as a generic text device generally prints one line of text at a time. Most dot matrix printers have a single vertical line of dot-making equipment on their print heads; others have a few interleaved rows in order to improve dot density.
               These machines can be highly durable. When they do wear out, it is generally due to ink invading the guide plate of the print head, causing grit to adhere to it; this grit slowly causes the channels in the guide plate to wear from circles into ovals or slots, providing less and less accurate guidance to the printing wires. Eventually, even with tungsten blocks and titanium pawls, the printing becomes too unclear to read.
               Although nearly all inkjet, thermal, and laser printers print closely-spaced dots rather than continuous lines or characters, it is not customary to call them dot matrix printers

In computing, a printer is a peripheral which produces a hard copy of documents stored in electronic  form, usually on physical print media such as paper or transparencies. Many printers are primarily used as local peripherals, and are attached by a printer cable or, in most newer printers, a USB cable to a computer which serves as a document source. Some printers, commonly known as network printers, have built-in network interfaces, typically wireless and/or Ethernet  based, and can serve as a hard copy device for any user on the network. Individual printers are often designed to support both local and network connected users at the same time. In addition, a few modern printers can directly interface to electronic media such as memory cards, or to image capture devices such as digital cameras, scanners; some printers are combined with a scanners and/or fax machines in a single unit, and can function as photocopiers. Printers that include non-printing features are sometimes called multifunction printers (MFP), multi-function devices (MFD), or all-in-one (AIO) printers. Most MFPs include printing, scanning, and copying among their features.

                                Consumer and some commercial printers are designed for low-volume, short-turnaround print jobs; requiring virtually no setup time to achieve a hard copy of a given document. However, printers are generally slow devices (30 pages per minute is considered fast; and many inexpensive consumer printers are far slower than that), and the cost per page is actually relatively high. However, this is offset by the on-demand convenience and project management costs being more controllable compared to an out-sourced solution. The printing press remains the machine of choice for high-volume, professional publishing. However, as printers have improved in quality and performance, many jobs which used to be done by professional print shops are now done by users on local printers; see desktop publishing. The world's first computer printer was a 19th century mechanically driven apparatus invented by Charles Babbage for his Difference Engine.

A Mobile device is a pocket-sized computing device, typically having a display screen with touch input and/or a miniature keyboard. In the case of the personal digital assistant (PDA) the input and output are often combined into a touch-screen interface. Smartphones  and PDAs are popular amongst those who require the assistance and convenience of certain aspects of a conventional computer, in environments where carrying one would not be practical. Enterprise digital assistants can further extend the available functionality for the business user by offering integrated data capture devices like barcode, RFID and smart card readers.

                          A graphical user interface (GUI), often pronounced gooey, is a type of user interface that allows users to interact with programs in more ways than typing such as computers; hand-held devices such as MP3  players, portable media players or gaming devices; household appliances and office equipment with images rather than text commands. A GUI offers graphical icons, and visual indicators, as opposed to text-based  interfaces, typed command labels or text navigation to fully represent the information and actions available to a user. The actions are usually performed through direct manipulation of the graphical elements.
                         The term GUI is historically restricted to the scope of two-dimensional display screens with display resolutions capable of describing generic information, in the tradition of the computer science research at the Palo Alto Research Center (PARC). The term GUI earlier might have been applicable to other high-resolution types of interfaces that are non-generic, such as videogames, or not restricted to flat screens, like volumetric displays.

                         To transmit their input, typical cabled mice use a thin electrical cord terminating in a standard connector, such as RS-232C, PS/2, ADB or USB. Cordless mice instead transmit data via infrared radiation (see IrDA) or radio (including Bluetooth), although many such cordless interfaces are themselves connected through the aforementioned wired serial buses.
                         While the electrical interface and the format of the data transmitted by commonly available mice is currently standardized on USB, in the past it varied between different manufacturers. A bus mouse used a dedicated interface card for connection to an IBM PC or compatible computer.
                         Mouse use in DOS applications became more common after the introduction of the Microsoft mouse, largely because Microsoft provided an open standard for communication between applications and mouse driver software. Thus, any application written to use the Microsoft standard could use a mouse with a Microsoft compatible driver. An interesting footnote is that the Microsoft driver standard communicates mouse movements in standard units called "mickeys".

With the arrival of the IBM PS/2 personal-computer series in 1987, IBM introduced the eponymous  PS/2 interface for mice and keyboards, which other manufacturers rapidly adopted. The most visible change was the use of a round 6-pin mini-DIN, in lieu of the former 5-pin connector. In default mode a PS/2 mouse communicates motion, and the state of each button, by means of 3-byte packets. For any motion, button press or button release event, a PS/2 mouse sends, over a bi-directional serial port, a sequence of three bytes, with the following format:

Standard PC mice once used the RS-232C serial port via a D-subminiature  connector, which provided power to run the mouse's circuits as well as data on mouse movements. The Mouse Systems Corporation version used a five-byte protocol and supported three buttons. The Microsoft version used an incompatible three-byte protocol and only allowed for two buttons. Due to the incompatibility, some manufacturers sold serial mice with a mode switch: "PC" for MSC mode, "MS" for Microsoft mode

                     A mouse is a pointing device that functions by detecting two-dimensional  motion relative to its supporting surface. Physically, a mouse consists of an object held under one of the user's hands, with one or more buttons. It sometimes features other elements, such as "wheels", which allow the user to perform various system-dependent operations, or extra buttons or features that can add more control or dimensional input. The mouse's motion typically translates into the motion of a cursor on a display, which allows for fine control of a graphical user interface.
                     The name mouse originated at the Stanford Research Institute and derives from the resemblance of early models which had a cord attached to the rear part of the device to the common mouse.
                     The first marketed integrated mouse, shipped as a part of a computer and intended for personal computer navigation, came with the Xerox 8010 Star Information System in 1981. However, the mouse remained relatively obscure until the appearance of the Apple Macintosh. The use of mice with desktop computers is now ubiquitous and they are widely available for separate purchase.

                      A keyboard is an input device, partially modeled after the typewriter keyboard, which uses an arrangement of buttons or keys, to act as mechanical levers or electronic switches. After punch cards and paper tape, interaction via teletype-style keyboards became the main input device for computers.
                     Despite the development of alternative input devices, such as the mouse (computing mouse), touch sensitive screens, pen devices, character recognition, voice recognition, and improvements in computer speed and memory size, the keyboard remains the most commonly used and most versatile device used for direct (human) input into computers.
                      A keyboard typically has characters engraved or printed on the keys and each press of a key typically corresponds to a single written symbol. However, to produce some symbols requires pressing and holding several keys simultaneously or in sequence. While most keyboard keys produce letters, numbers or signs (characters), other keys or simultaneous key presses can produce actions or computer commands.
                      In normal usage, the keyboard is used to type text and numbers into a word processor, text editor or other program. In a modern computer, the interpretation of key presses is generally left to the software. A computer keyboard distinguishes each physical key from every other and reports all key presses to the controlling software. Keyboards are also used for computer gaming, either with regular keyboards or by using keyboards with special gaming features, which can expedite frequently used keystroke combinations. A keyboard is also used to give commands to the operating system of a computer, such as Windows' Control-Alt-Delete combination, which brings up a task window or shuts down the machine.

                   A monitor or display is an electronic visual display for computers. The monitor comprises the display device, circuitry, and an enclosure. The display device in modern monitors is typically a thin film transistor liquid crystal display (TFT-LCD), while older monitors use a cathode ray tube (CRT).

                  The size of an approximately rectangular display is usually given as the distance between two opposite screen corners, that is, the diagonal of the rectangle. One problem with this method is that it does take into account the fact that when a rectangle with a given length to its diagonal, becomes more rectangular, and less square (its aspect ratio increases), and at the same time its diagonal remains the same, then the area of the rectangle decreases. That is, given the same diagonal, the area of the display decreases if its aspect ratios increases. For example, a 4:3 21 in (53 cm) monitor has an area of about 211 sq in (1,360 cm2), while a 16:9 21-inch widescreen has about 188 sq in (1,210 cm2).
                  This method of measurement is inherited from the method used for the first generation of CRT television, when picture tubes with circular faces were in common use. Being circular, only their diameter was needed to describe their size. Since these circular tubes were used to display rectangular images, the diagonal measurement of the rectangle was equivalent to the diameter of the tube's face. This method continued even when cathode ray tubes were manufactured as rounded rectangles.
                  Another problematic practice was using the size of a monitor's imaging element, rather than the size of its viewable image, when describing its size in publicity and advertising materials. Especially on CRT displays, a substantial portion of the imaging element is concealed behind the case's bezel or shroud in order to hide areas outside the monitor's safe area due to overscan. These practices were seen as deceptive, and widespread consumer objection and lawsuits eventually forced most manufacturers to instead measure viewable size.
